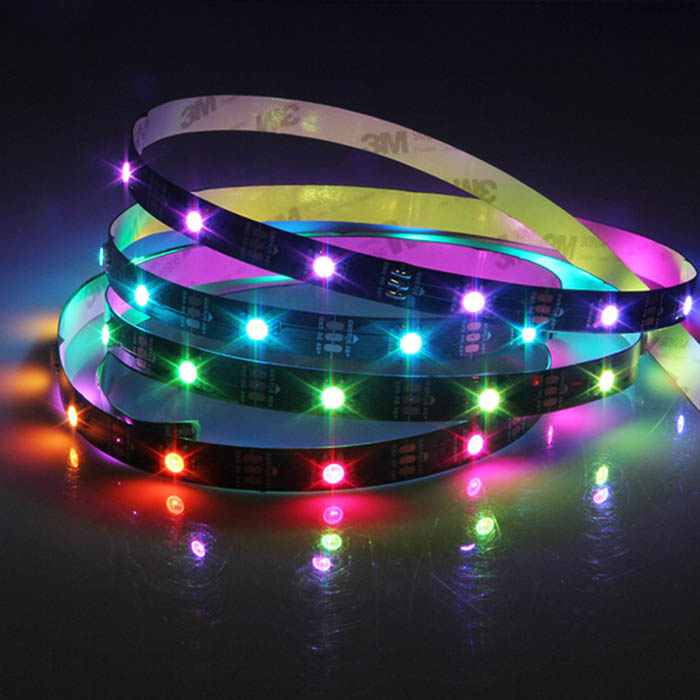

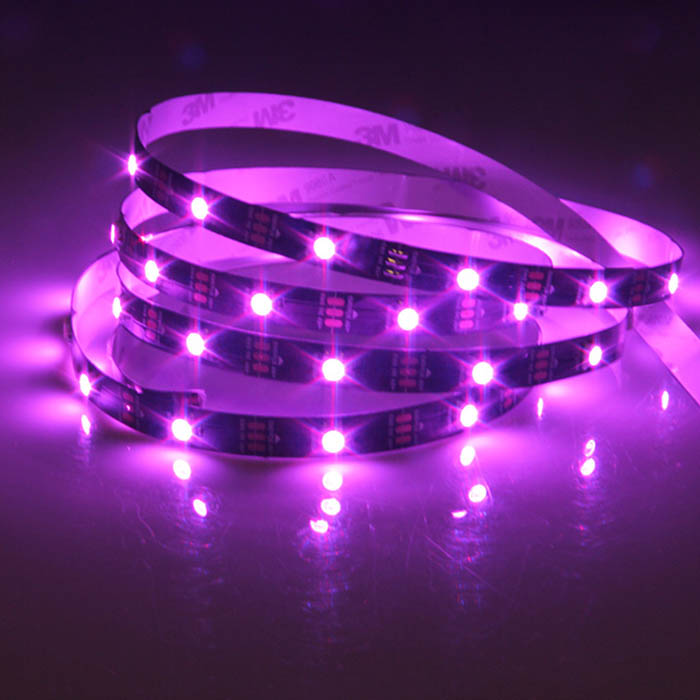

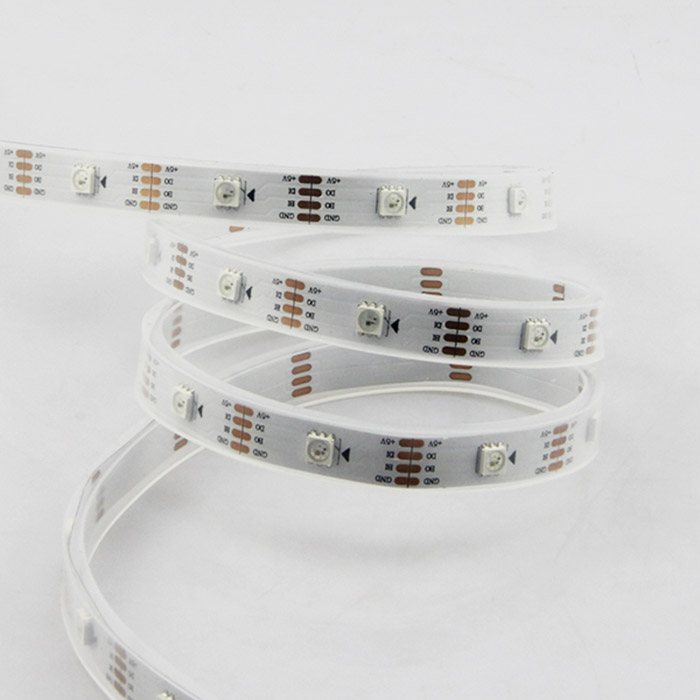

SUR-5050RGB+IC30-5V

Features:
. 5V DC low voltage power supply, security and energy efficiency.

. Each LED with addressable and programmable IC.

. The control signal will automatically transfer to the next LED with, sk6813 IC if one intermediate LED

  is broken.  All the good LEDs with sk6813 IC will work as normal except the one broken.

. High brightness low power consumption.

. Led type: 5050 high brightness SMD led.
. Led lighting angle: 120°.

. Operation temperature: -20-50℃.

. Life time: 50,000hours.

. SPI LED strip by controller.

. 3M 300LSE. 3M VHB and Thermal conductive tape ar available.
Parameters:

Size:                  L5000 x W10 x H3mm.                Inlay IC:                  SK6813 or SK6812

Cutting unit:     1 LEDs.                                        CCT:                        R, G, B

Input Voltage:  5V DC.                                         Lumen/M:               40.5 / 90.5 / 20.25.

Max. power:     6W.                                              Waterproof rating:  IP20, IP65, IP67, IP68 is available.


SUR-5050FRGB IC60-5V

  • Description
  • Inquiry
  • FAQ

SUR-5050RGB IC30-5V

SUR-5050RGB IC30-5V

SUR-5050RGB IC30-5V

SUR-5050RGB IC30-5V

SUR-5050RGB IC30-5V

SUR-5050RGB IC30-5V


Surmountor Lighting Co Limited

Q1:LED Strip Series

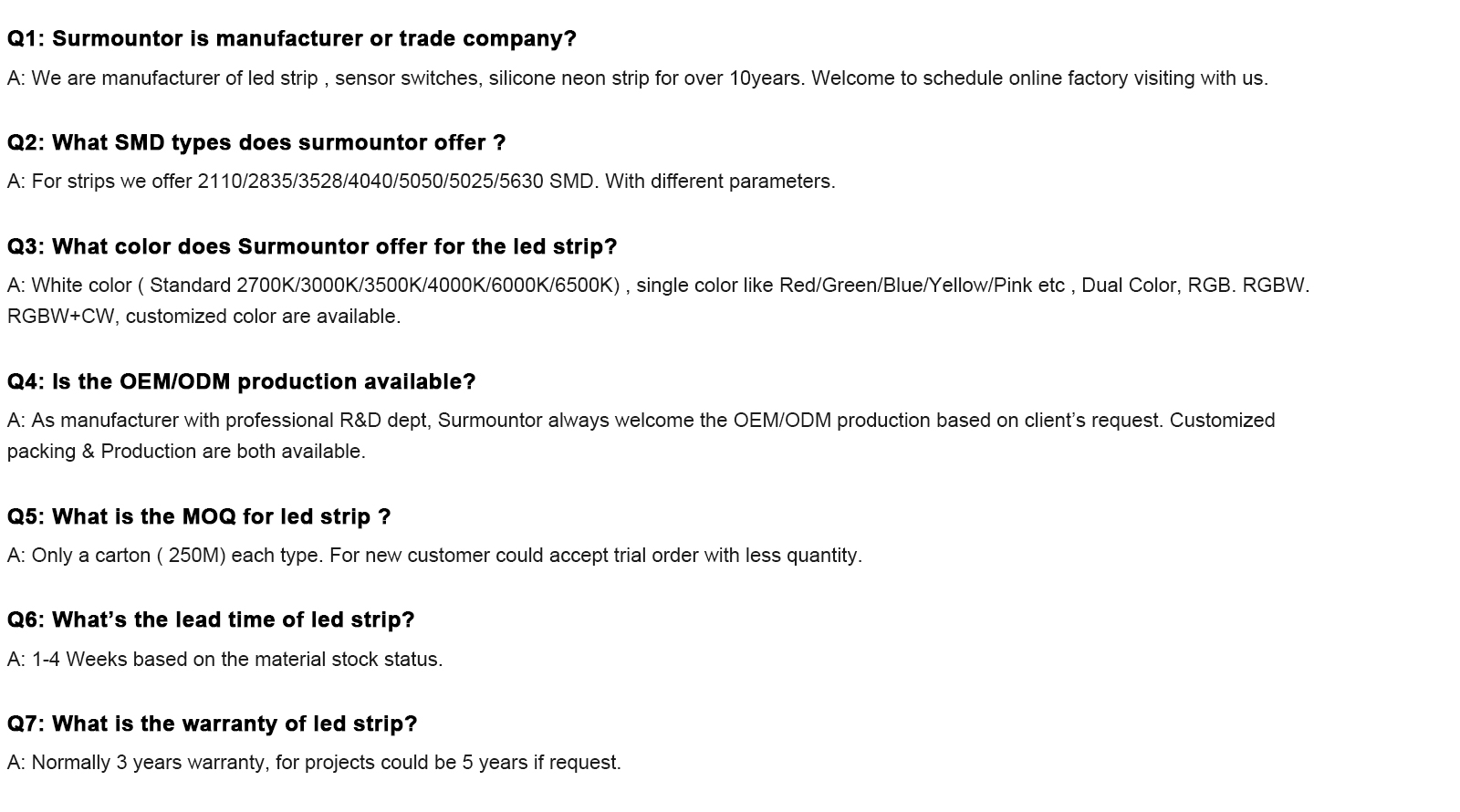

Q1: Surmountor is manufacturer or trade company?

A: We are manufacturer of led strip , sensor switches, silicone neon strip for over 10years. Welcome to schedule online factory visiting with us.


Q2: What SMD types does surmountor offer ?

A: For strips we offer 2110/2835/3528/4040/5050/5025/5630 SMD. With different parameters.


Q3: What color does Surmountor offer for the led strip?

A: White color ( Standard 2700K/3000K/3500K/4000K/6000K/6500K) , single color like Red/Green/Blue/Yellow/Pink etc , Dual Color, RGB. RGBW. RGBW+CW, customized color are available.


Q4: Is the OEM/ODM production available?

A: As manufacturer with professional R&D dept, Surmountor always welcome the OEM/ODM production based on client’s request. Customized packing & Production are both available.


Q5: What is the MOQ for led strip ?

A: Only a carton ( 250M) each type. For new customer could accept trial order with less quantity.


Q6: What’s the lead time of led strip?

A: 1-4 Weeks based on the material stock status.


Q7: What is the warranty of led strip?

A: Normally 3 years warranty, for projects could be 5 years if request.
