Specification:

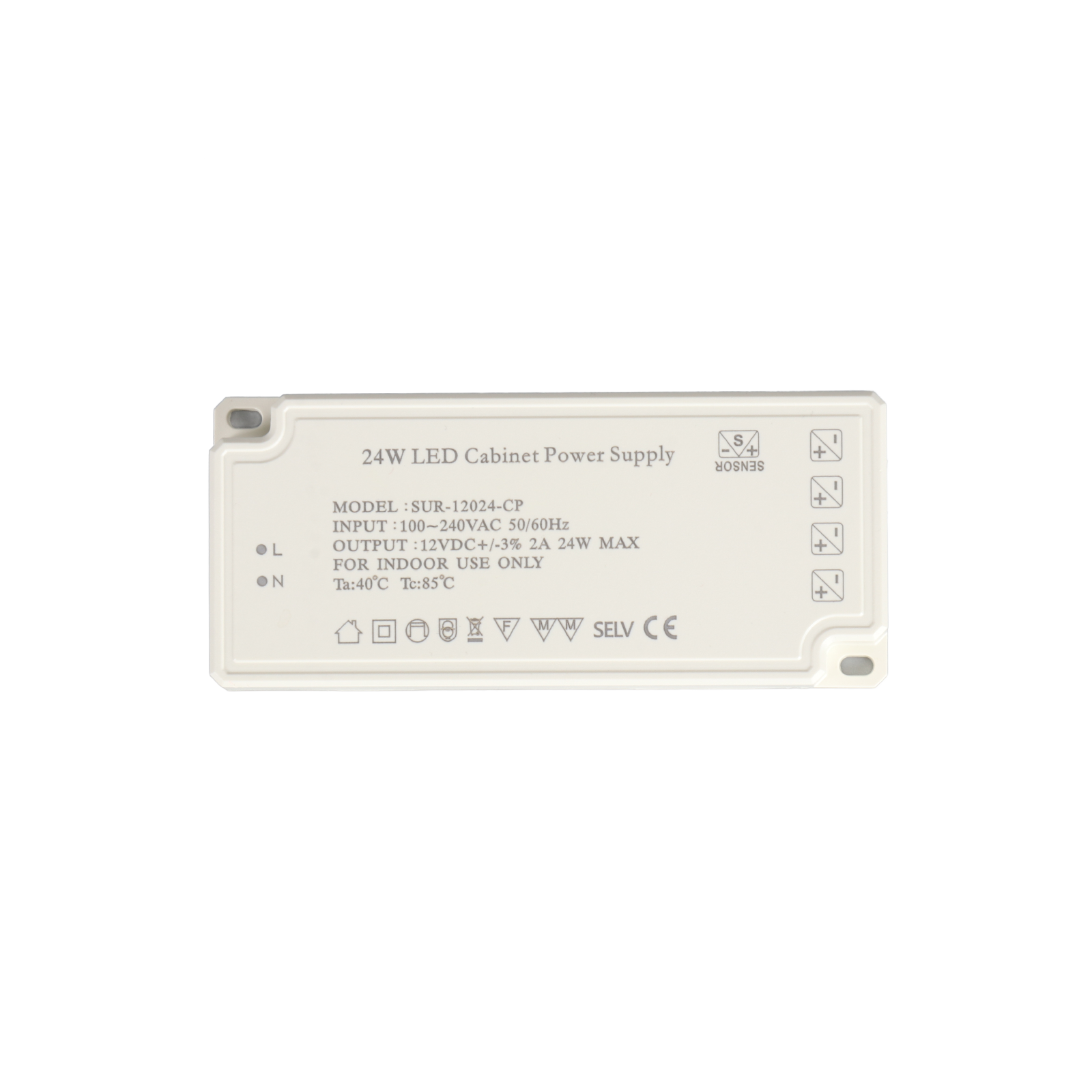

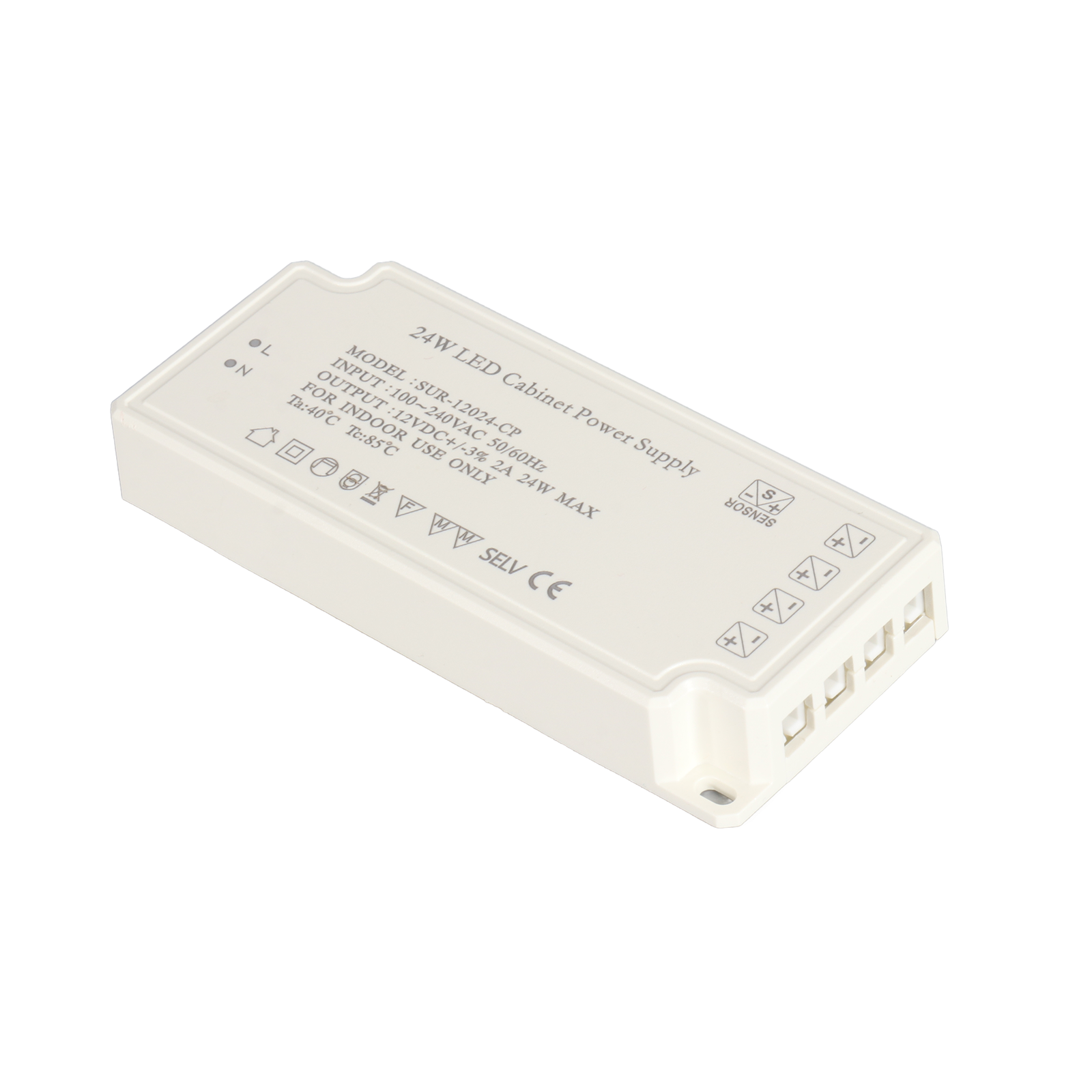

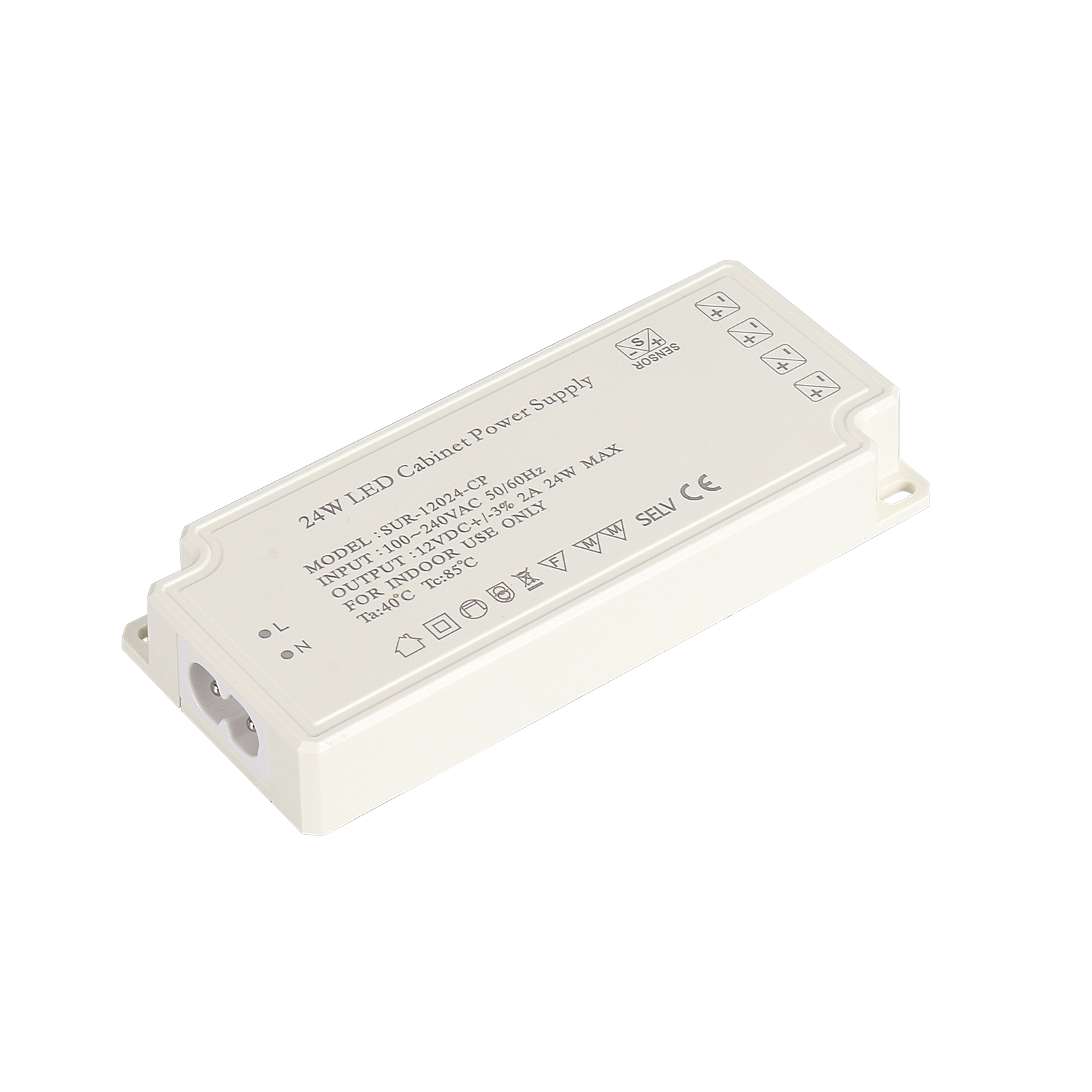

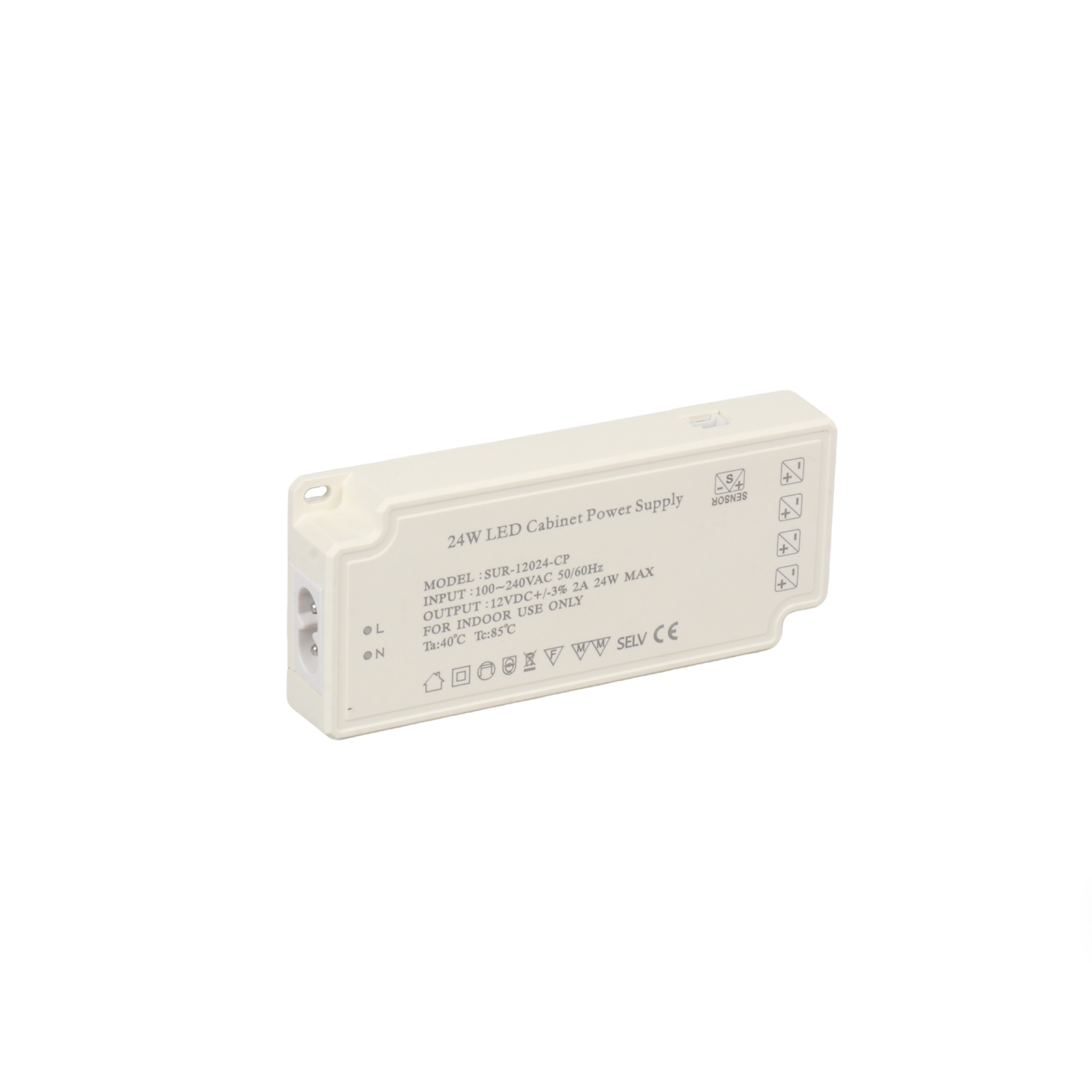

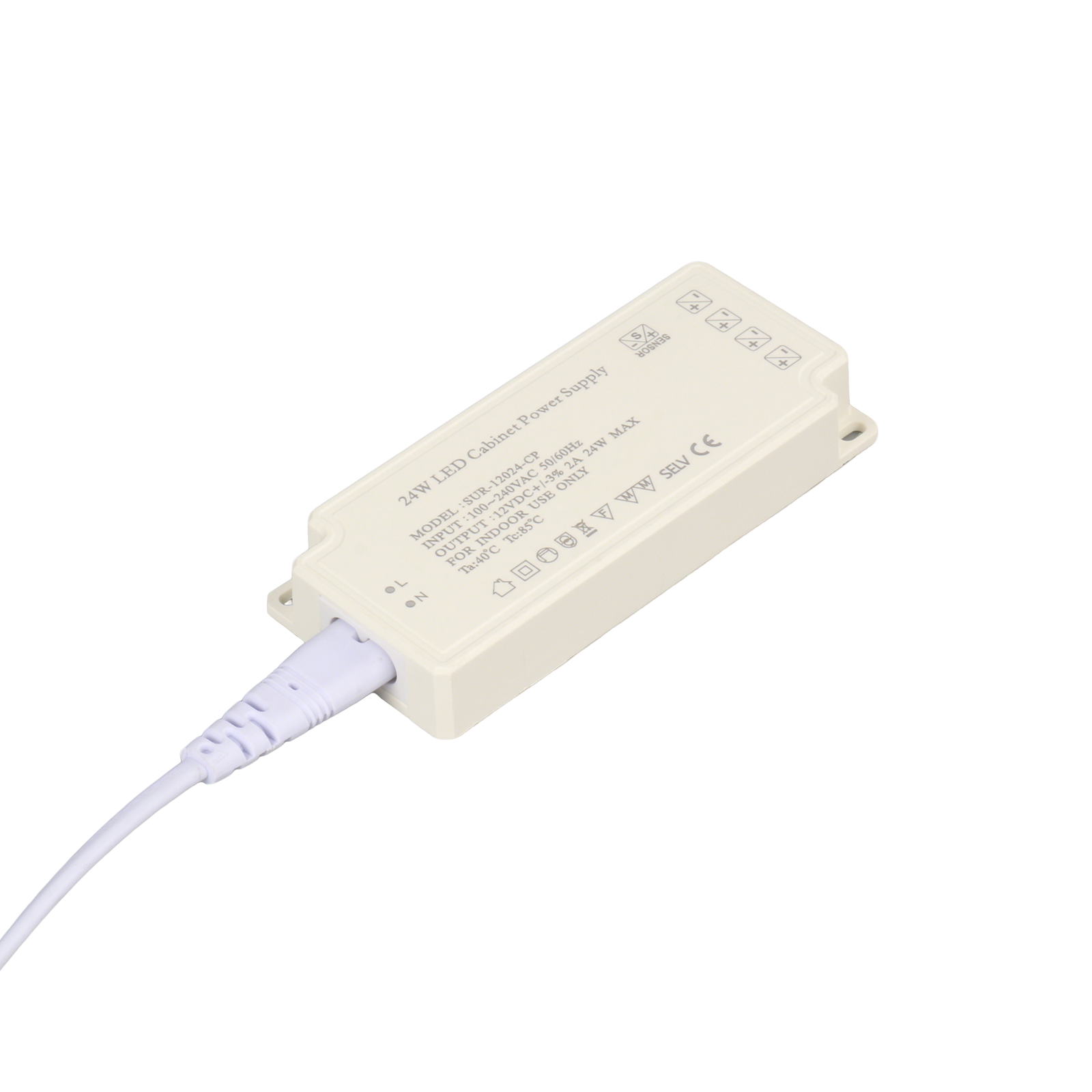

| Model No. | SUR-12024-CP | SUR-12036-CP | SUR-12060-CP | SUR-12100-CP |
| Output Voltage | 12VDC | |||
| Output Rated Current | 2A | 3A | 5A | 8.3A |
| Output Rated Power | 24W | 36W | 60W | 100W |
| Input Voltage Range | 100-240VAC | |||
| Input Frequency Rang | 47-63HZ | |||
| Input Power factor | >0.5 | |||
| Input AC current | 0.218A=115VAC; 0.109A=230VAC | 0.566A=115VAC; 0.288A=230VAC | 0.94A=115VAC; 0.454A=230VAC | 0.218A=115VAC; 0.109A=230VAC |
| Over load current protection | OK | |||
| Over Voltage protection | OK | |||
| Short circuit protection | OK | |||
| Over temperature protection | OK | NO | NO | OK |
| Working Temperature | -25~ 80℃ | |||
| Housing Temperature | 20-95%RH | |||
| Size | 128*52*18mm | 138*55*18mm | 168*60*20mm | 198*55*20mm |
| Material | PC Flame retardant, Protection level 94V0 | |||
