Specification:
| Model | PIR010 |
| Applicable voltage | DC5-24V |
| current | 4A MAX |
| sensing Angle | 100° |
| Delay Time | 30S, 60S, 380s for option |
| Sensing Mode | Day time and night time |
| Light-off Mode | on/off with brightness buffer |
| Working Temperature | -20"C to +40°c |
| Product Dimension | 60*61*31.2mm |
| Packing Dimension | 70*70*40mm |
Product Features

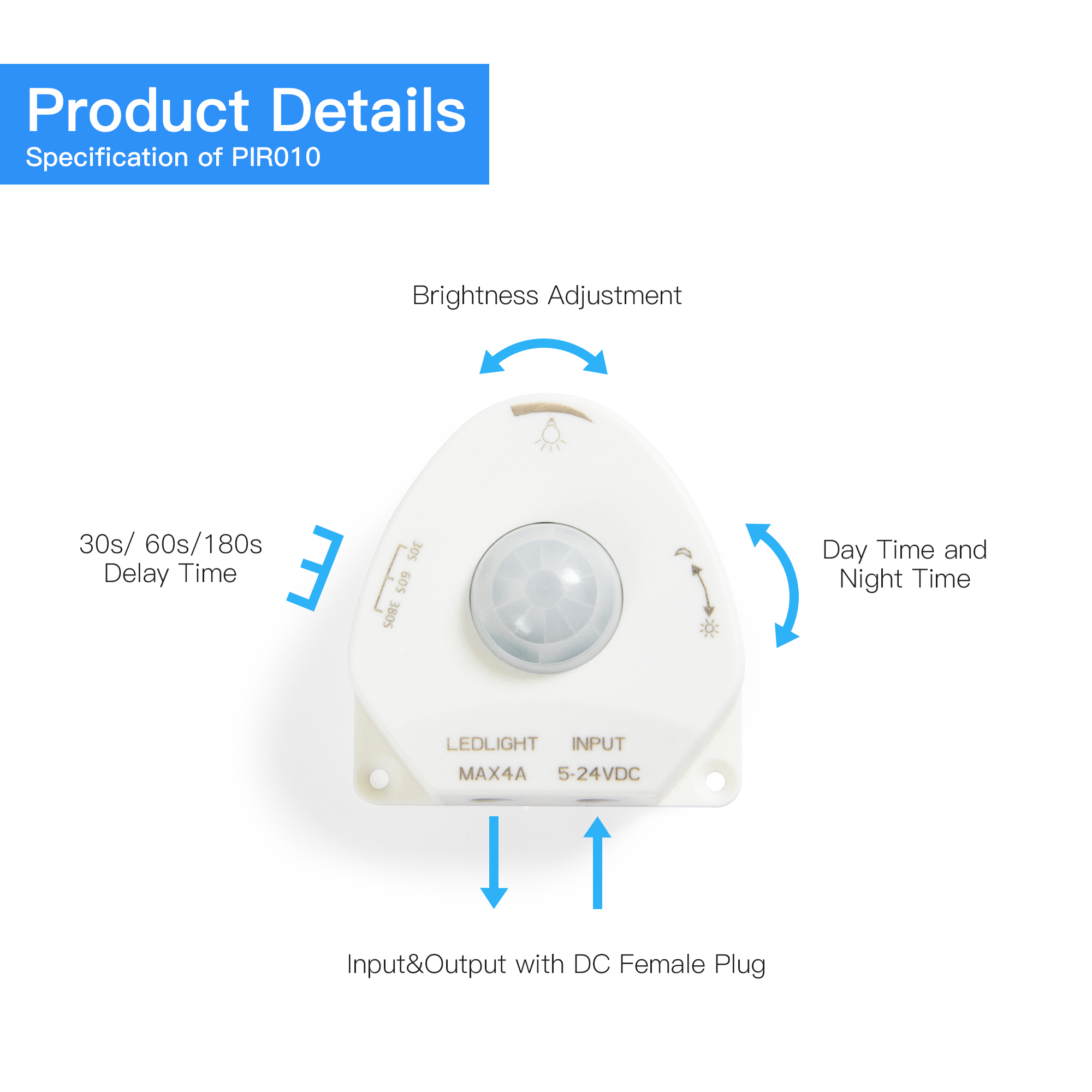

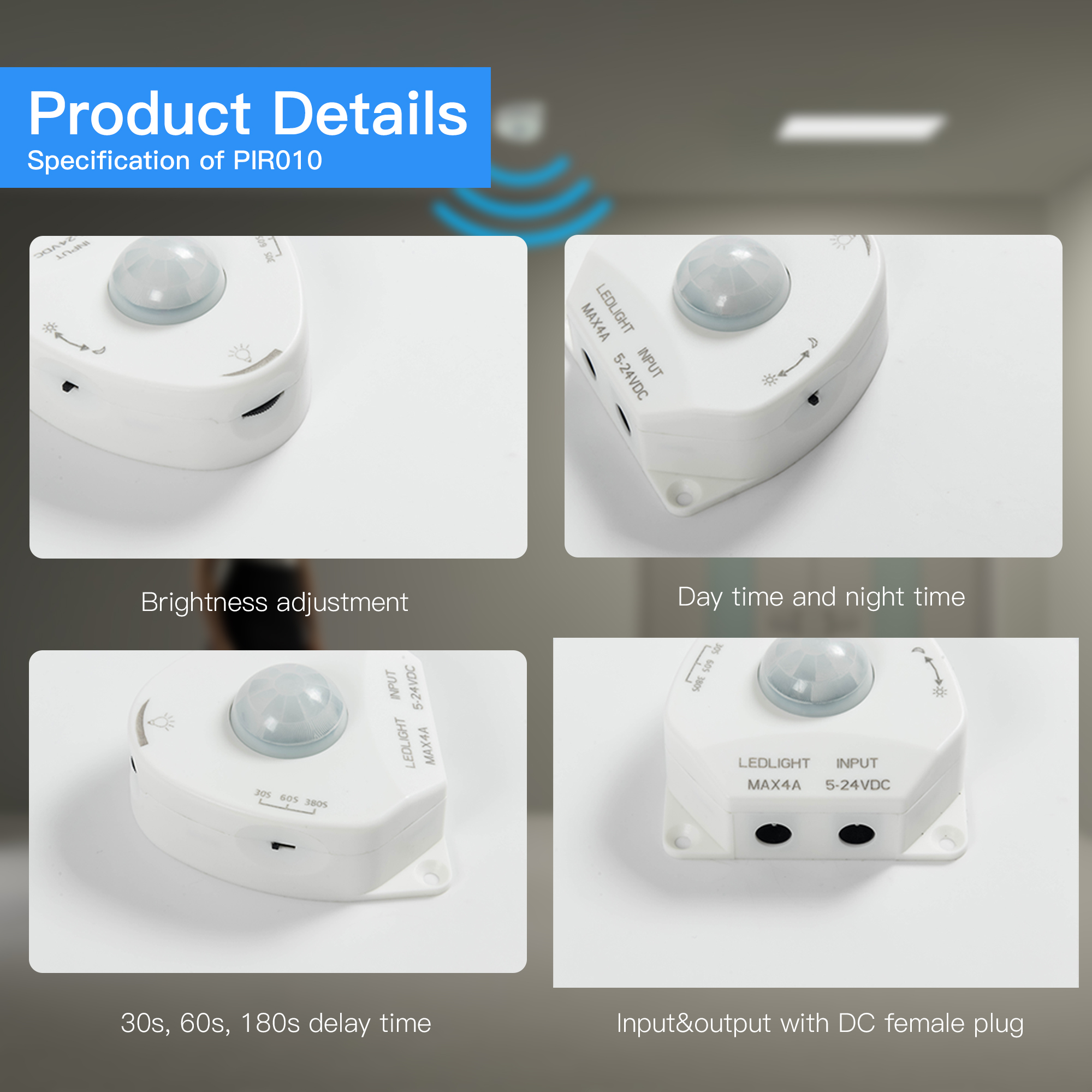

-The brightness is adjustable. The required brightness can be easily adjusted through the knob on the top of the product.
-Three levels of induction time are available, 30 seconds, 60 seconds, and 380 seconds.
-Sensing to turn on the illuminance, there are two modes of day and night to choose from.
-Built-in sensitivity temperature compensation function.
-Input reverse connection protection and input and output reverse connection protection.
-The light is soft and not dazzling.
-Detection Range: 6m Max.
